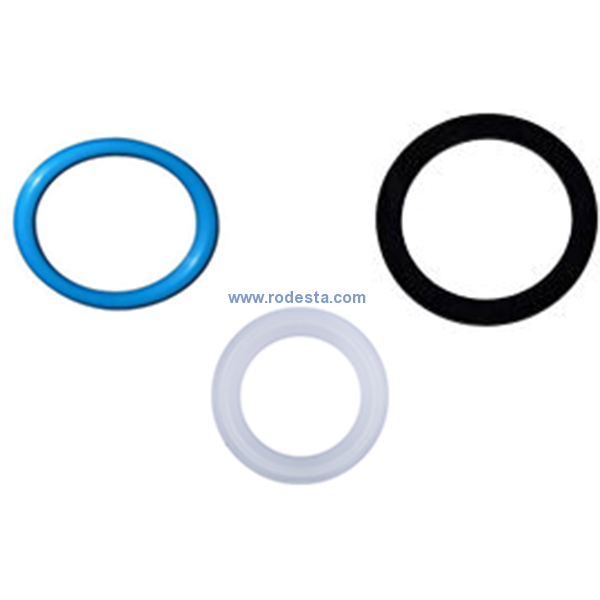

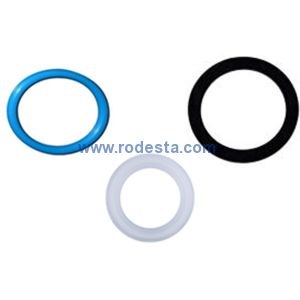

Dichting DIN 11851

Dichting DIN 11851

Product Code: 15005
Beschikbaarheid:
Op Voorraad

Beschikbare Opties:

Beschrijving

Dichting DIN 11851

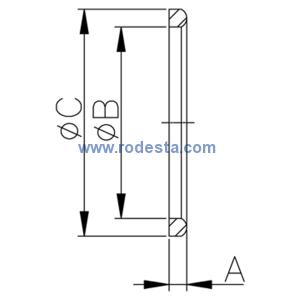

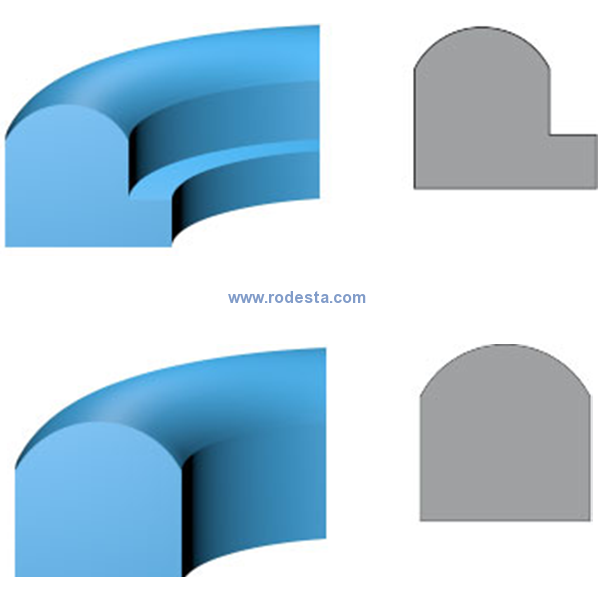

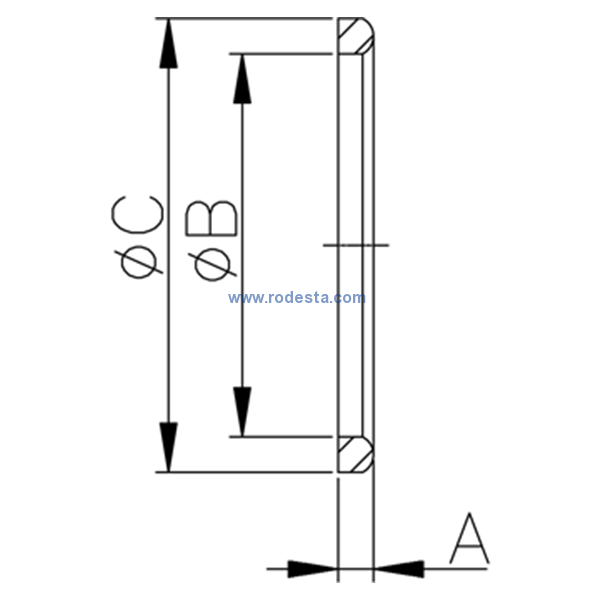

Uitvoering Zonder "Bund" (standaard)

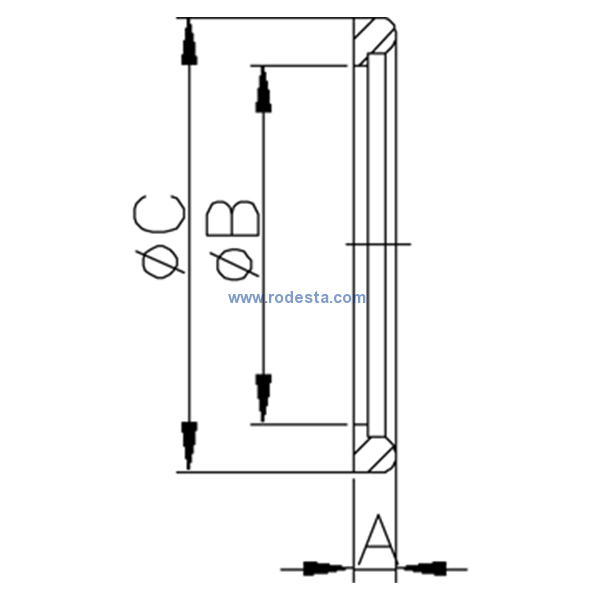

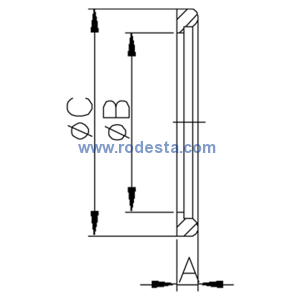

Met "Bund"
Afmetingen DN 10 (13mm) t/m DN 200 (204mm)
INCH 1" (25,4mm) t/m INCH 4" (101,6mm)
DN 10 ISO (17,2mm) t/m DN 150 ISO (168,3mm)
Werkdruk DN 10 t/m DN 40  (40 bar bij 20°C)
DN 50 t/m DN 100  (25 bar bij 20°C)
DN 125 t/m DN 150  (16 bar bij 20°C)
Dichting

Perbunan (BUNA-N) -30°C tot +100°C

EPDM -40°C tot +130°C

Viton -20°C tot +200°C

Teflon (PTFE) -25°C tot +200°C

Silicone (VMQ) -60°C tot +200°C

Andere dichting kwaliteiten op aanvraag.

Downloads

PDF DIN 11851 koppelingen Dichting DIN 11851

PDF DIN 11851 koppelingen Compleet overzicht DIN 11851
